Hanger bolt set for PV module mounting, corrugated roof

Art.nr. 5901820 | EAN 4012197459789

Produktbeskrivning
Produktbeskrivning

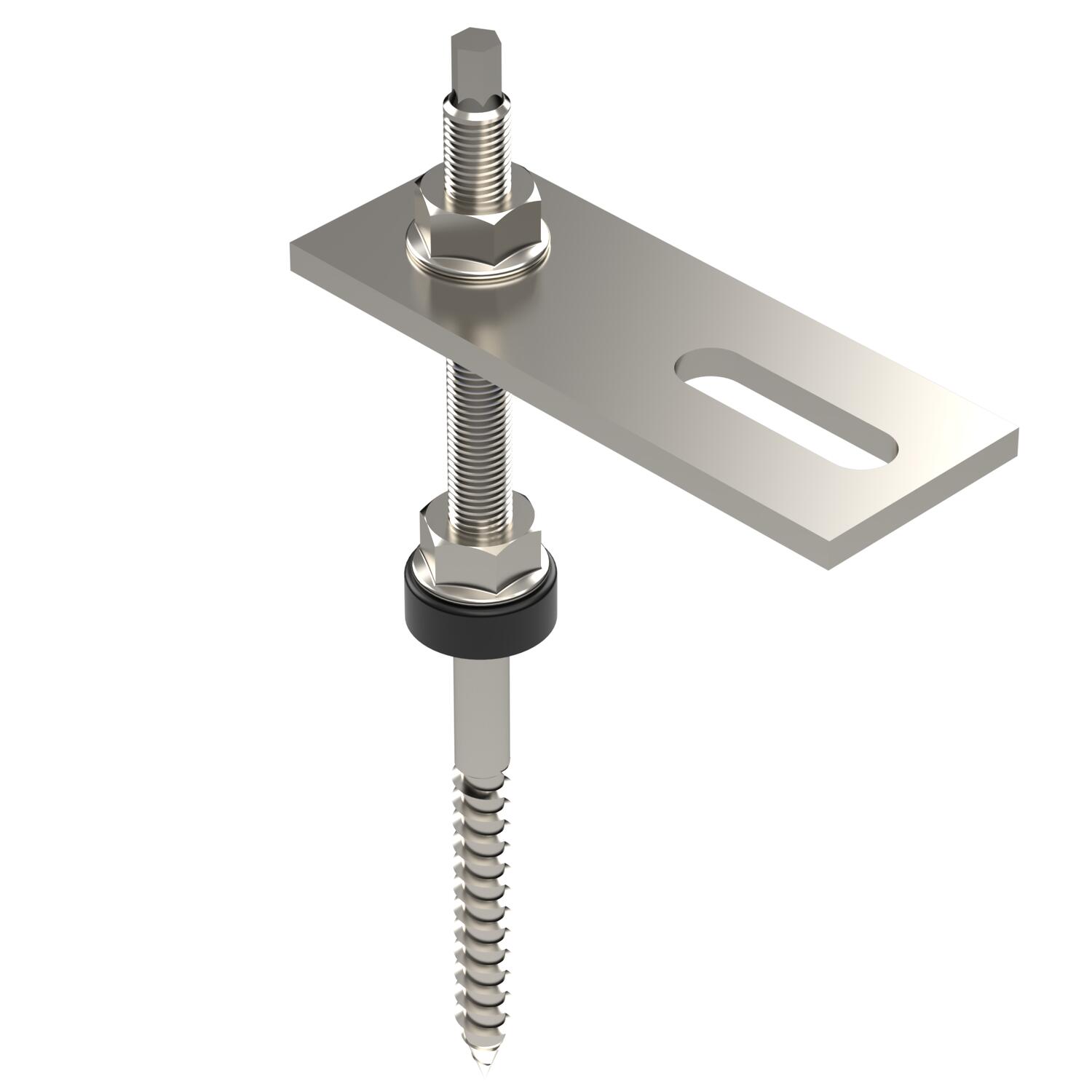

Hanger bolt set to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for fastening in the wooden substructure of corrugated roofs made out of plastic, tin or fibre cement. Set consists of hanger bolt with pre-mounted EPDM seal, adapter plate for the support profile and additional nuts for the optional height adjustment. Fastening of the support profile with screw with slot nut, type SKS HM (please order separately).
  • Communautés Européennes, EG-konformitetsförklaring enligt EG-direktiv

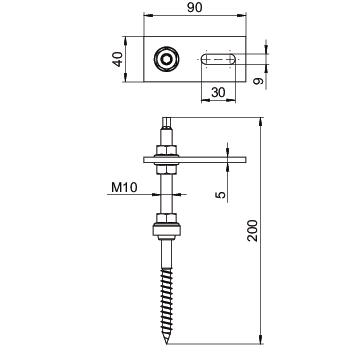

Teknisk data

Teknisk data

Diameter 10 mm
Dimension 200x40x27
Färg rostfritt stål
Huvudform sexkant (hexagonal)
Längd 200 mm
Material Rostfritt stål 1.4301
Skaftdiameter 10 mm
Skruvsystem sexkant (hexagonal)
Alla typer

Alla typer

Typ Längd Skaftdiameter Art.nr. Mängd Minsta förpackning
STSS 10x200 A2 200 mm 10 mm 5901820
20 Styck
STSS 12x200 A2 200 mm 12 mm 5901826
20 Styck
STSS 12x300 A2 300 mm 12 mm 5901828
20 Styck
Ladda ner

Ladda ner

Inga kravspecifikationer tillgängliga för denna produkt
